Product Details

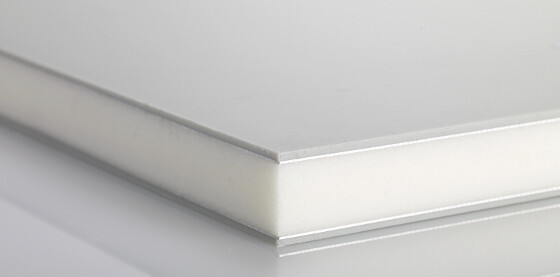

N-Form Panel
The N-Form Panel solid plastic panel is a very long-lived composite sheet – over 1,500 uses with 1 panel are documented. As a result the N-Form Panel is a very economical choice for panelized formwork. The patented layered panel is extremely robust, durable and enables top quality exposed concrete.
| Description | N-Form | |||||
|---|---|---|---|---|---|---|
| Type of Panel | N10 | N13 | N15 | N18 | N20 | N22 |
| Thickness (mm) | 9.9 | 12.9 | 14.9 | 17.9 | 19.9 | 21.9 |
| Tolerance (mm) | +0 / -0.1 | |||||
| Weight (kg/m2) | 8 | 10.5 | 13.36 | 16.1 | 14.5 | 19.6 |
| Width | 1220 | |||||
| Length | 2440 | |||||
| Module of Elasticity (N/mm2) | 6550 | 5550 | 5350 | 5250 | 5050 | 4550 |
| Flexural Strength (N/mm2) | 45 | 36 | 37 | 43 | 42 | 40 |
| Shear Resistance (N/mm2) | > 5.9 | |||||
| Thermal Properties | ||
|---|---|---|
| Conductivity | 0.2 | 0.2 |
| Expansion | 65 | 40 |
| Temperature Range | -15 Degrees to +85 Degrees | -15 Degrees to +85 Degrees |
| Other Properties | ||
|---|---|---|
| Water Absorption | 0% | 0% |
| Nailing | Same as Plywood | Same as Plywood |
| Scratch Resistance | 0.85 | 0.75 |
| Abrasion Resistance | > 27.000 | > 8.500 |
| Surface Hardness | 65 | 65 |
| Inflammability | B2 | B2 |

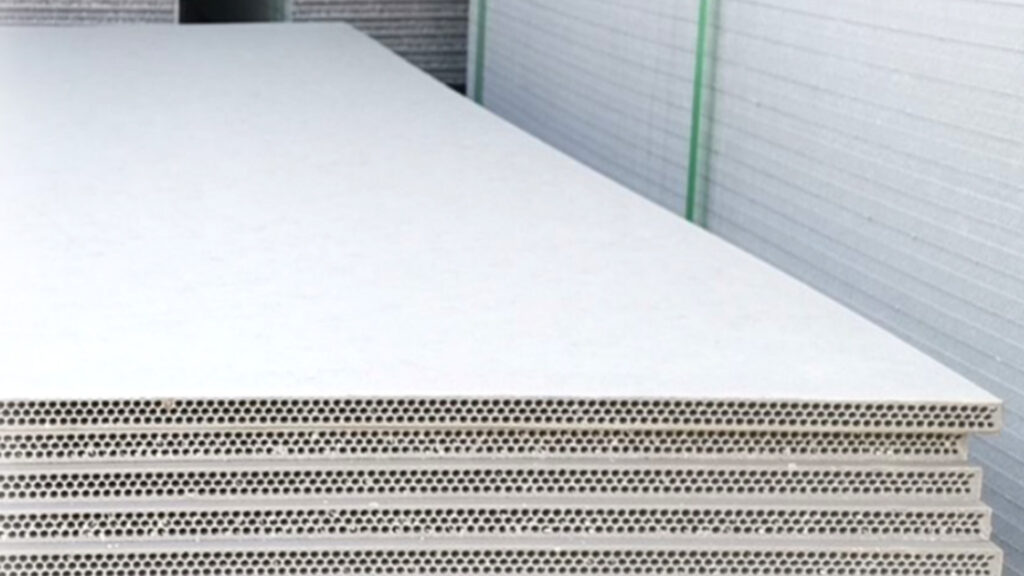

Eco-Form
Eco-Form is a plastic hollow board primarily used as a formwork material for concrete casting. It is composed of polypropylene plastic which gives its high durability, smooth surface, high heat and water resistance properties. As an alternative to traditional wooden formworks, i.e. phenolic boards, Eco-Form saves both on construction cost, through its reusability; and time, through its workability. While this lightweight board can be used multiple times, increasing work productivity, it also has a wide array of applications such as lightweight partitions, modular cabinets and shelves.
| Description | Eco-Form | ||
|---|---|---|---|
| Type of Panel | E12 | E15 | E18 |
| Thickness (mm) | 11.9 | 14.9 | 17.9 |
| Tolerance (mm) | +0 / -0.1 | ||
| Weight (kg/m2) | 7.68 | 9.6 | 11.52 |
| Width | 1220 | ||
| Length | 2440 | ||
| Module of Elasticity (N/mm2) | 2456 | 3070 | 3684 |
| Flexural Strength (N/mm2) | 71 | 60 | 56 |
| Shear Resistance (N/mm2) | > 5.9 | ||
| Item | Dimensions | Weight | Thickness | Pick-up price per board (VAT INC) |
|---|---|---|---|---|
| Ecoboard | 2440 mm x 1220 mm | 19 kg | 12 mm | Contact Us |
| 24 kg | 15 mm | |||
| 28 kg | 18 mm |
| Specifications | Ecoboard 18mm | Phenolic board 18mm or 3/4 inch | |
|---|---|---|---|
| Conservative | Maximized | ||
| Cost per piece* (4 x 8 ft) | Contact Us | ||
| No. of times used** | 80x | 100x | 6x |
| Cost per usage | Contact Us | ||
| Cost per sqm | Contact Us | ||
| Savings vs Phenolic board | 26% | 56% | - |
| Approx. # of times use to breakeven with phenolic board | 11x | - | |
| * Prices may be subject to change **Subject to on-site handling, proper usage, and maintenance | |||
| Specifications | Requirements | Inspection result | Testing basis |
|---|---|---|---|
| Hardness (D) | 20 pt | 66 | GB/T 2411 - 2008 |
| Impact strength (kl / sqm) | > 30 | 44.5 | GB/T 1043.3 - 2008 |
| Bending strength (MPa) | > 30 | 58.5 | GB/T 9341 - 2008 |
| Bending modulus (MPa) | > 3000 | 3.07 x 10 m3 | GB/T 9341 - 2008 |
| Heating rate crosswise (%) | ± 0.2 | - 0.11 | JG/T 418 - 2014 7.2.7 |
| Heating rate lengthwise (%) | ± 0.2 | - 0.125 | JG/T 418 - 2013 7.2.7 |
| Vicat softening point (dec C) | > 80 | 82 | GB/T 1034 - 2008 |
| Water absorption(%) | < 0.5 | 0.42 | GB/T 1633 - 2000 |
| * Using sample size: 1830 mm x 915 mm x 15 mm | |||
| Performance | Ecoboard formwork | PVC plastic formwork | Phenolic board |
|---|---|---|---|
| Water resistance | Good | Good | Poor |
| Surface abrasion resistance | Good | Good | Poor |
| Fire/heat resistance | Good | Good | Poor |
| Impact / drop strength | High | High | Normal |
| After absorbing water | No deformed | Minimal deformation | Deformed |
| Warping after use | No | Minimal warping | Yes |
| Weight ( kg/pc ) | 24 (15 mm) | 29 (15 mm) | 25 (15 mm) |
| Recyclability | Yes | Yes | No |
| Cost of use | Lowest | Low | High |
| Reusable time | Over 30x | Over 30x | 3-4x |
| Formwork stripping process | Easy | Easy | Difficult |
| Nailable and screwable | Yes | Yes | Yes |
| Can be cut / wooden saw | Yes | Yes | Yes |
| Scrap value | Some | Some | None |
| Material | Polypropylene (pp) | Polyvinyl chloride (pvc) | Wooden sheets |
| Size | 1220 x 2440 x 12/15/18 mm | 1220 x 2440 x 12/15/18 mm | 1220 x 2440 x 12/18 mm |

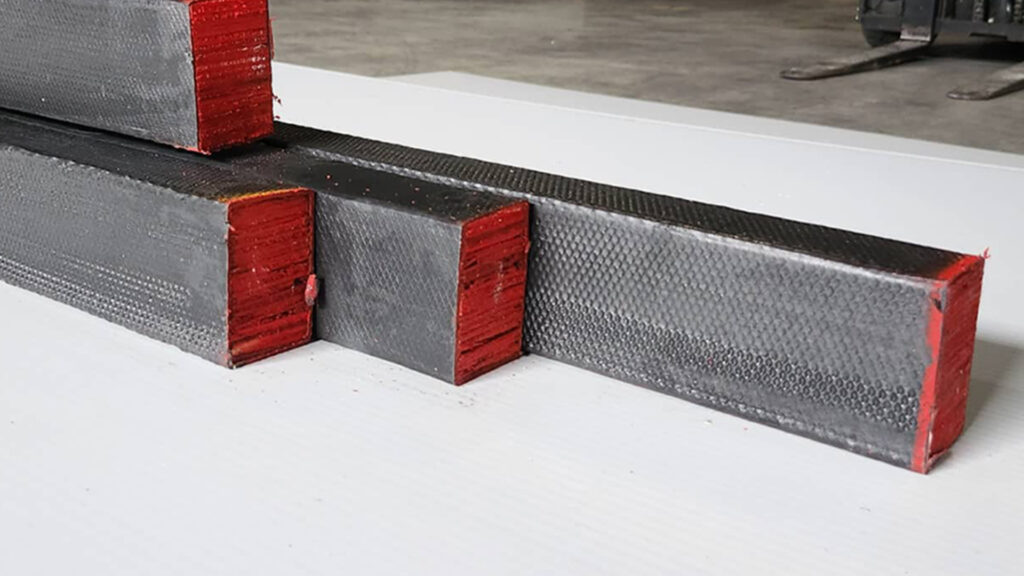

Ecobeam
Ecobeam is a multi-functional engineered wood laminated beam primarily used for construction formwork beams or bracing and wood architectural products (door, stairs, planks, louvers). The Ecobeam is composed of compressed multi-layered thin plywood wrapped in a strong coating. It is your cost-effective and lightweight alternative solution in replacement of traditional formwork support systems (lumber or GI pipes) and raw lumber used for finishing architectural materials.
| Width x Height | Length | Weight (per linear meter) |
|---|---|---|
| 50 x 70mm | 2.4 m | 2.2 kg |
| 3.0 m |
